Use Ameba as UDP server

In this example, we connect Ameba to WiFi and use Ameba to be an UDP server. When Ameba receives a message from UDP client, it replies “acknowledged” message to client.

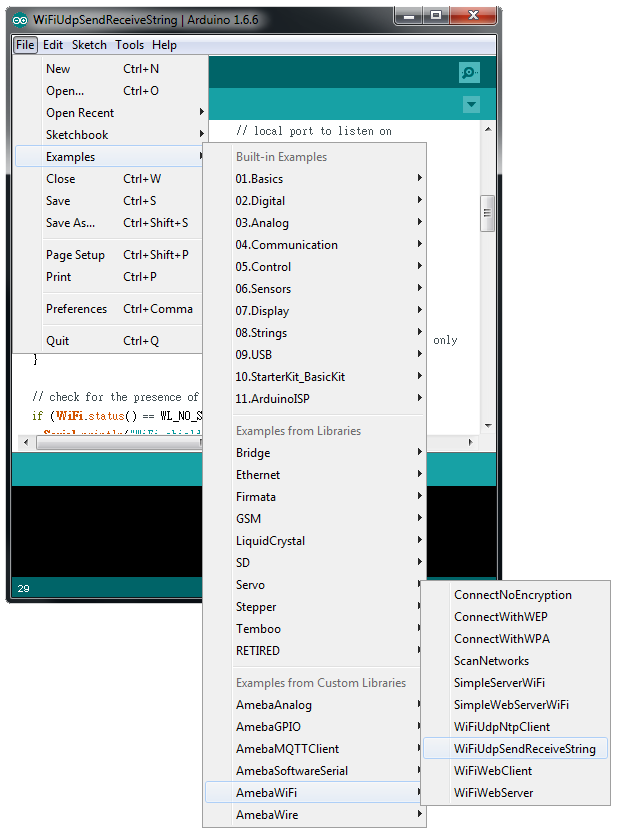

Open the WiFi Web Server example. “File” -> “Examples” -> “AmebaWiFi” -> “WiFiUdpSendReceiveString”

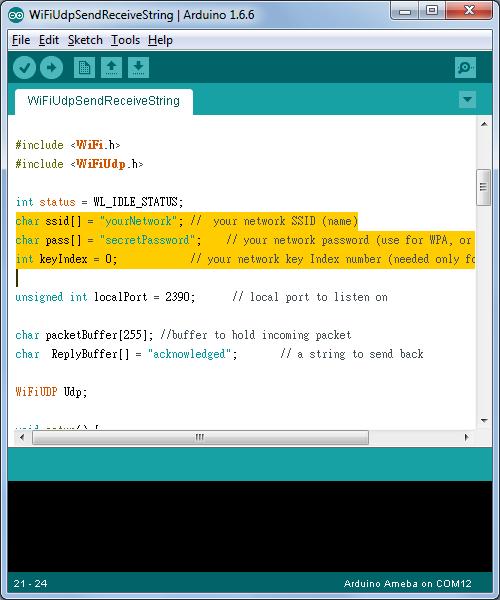

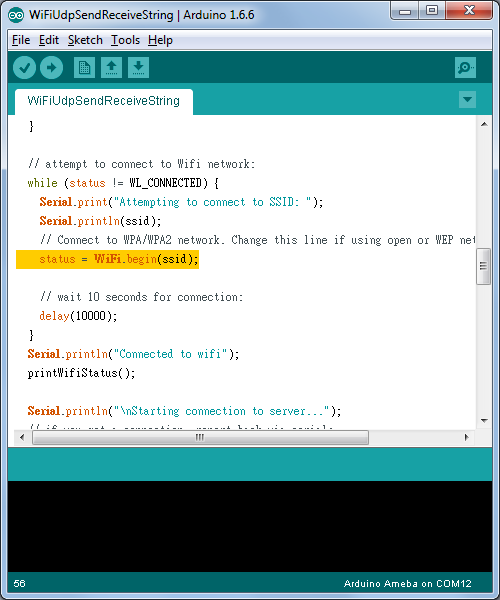

Modify related information, including ssid, pass, keyindex

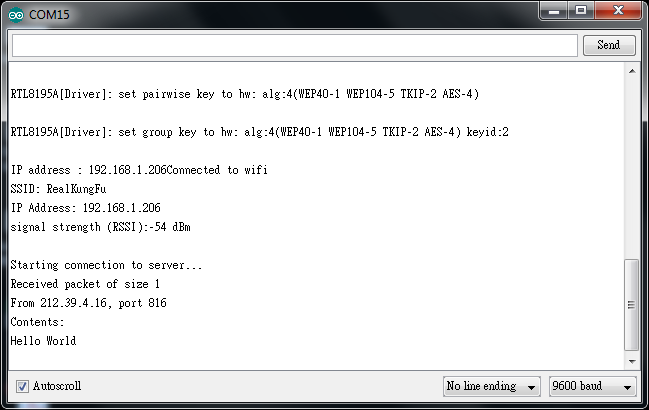

Compile the code and upload it to Ameba. After pressing the Reset button, Ameba connects to WiFi and starts the UDP server with port 2390. After the UDP server starts service, Ameba prints the “Starting connection to server” message and waits for client connection.

As to the UDP client, we use “sockit” program in the computer to connect to UDP server.

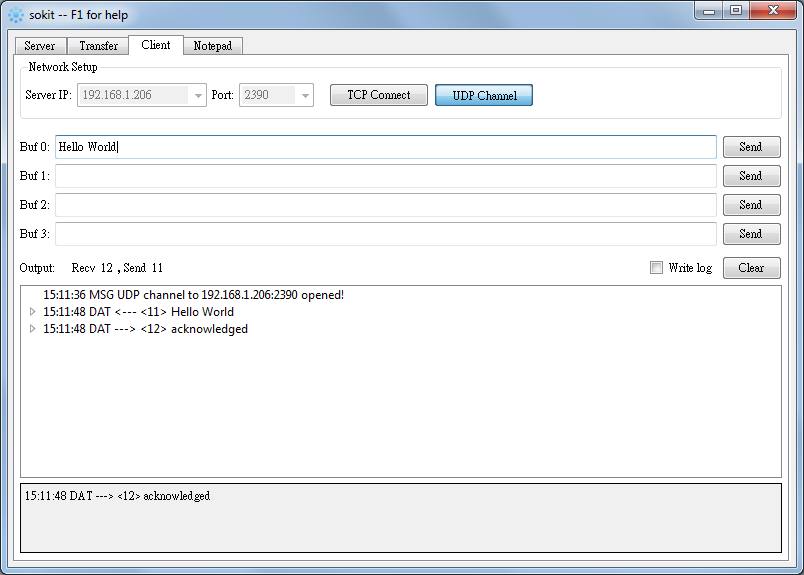

Choose client mode and fill in the IP of UDP server (which is the IP of Ameba) and port 2390, then click “UDP Connect”.

After the connection is established, fill in “Hello World” in the Buf 0 field in sockit and click “Send”. Then you can see the Ameba UDP server replies “acknowledged”.

Ameba uses the WiFiUdp class which is compatible with Arduino WiFi Shield, so the
Refer to the Arduino tutorial for detailed information about this example.
https://www.arduino.cc/en/Tutorial/WiFiSendReceiveUDPString

First, use begin() to open an UDP port on Ameba.
https://www.arduino.cc/en/Reference/WiFiUDPBegin

Use parsePacket() to wait for data from client.
https://www.arduino.cc/en/Reference/WiFiUDPParsePacket

When a connection is established, use remoteIP() and remotePort() to get the IP and port of the client.
https://www.arduino.cc/en/Reference/WiFiUDPRemoteIP
https://www.arduino.cc/en/Reference/WiFiUDPRemoteIP

Then use read() to read the data sent by client.
https://www.arduino.cc/en/Reference/WiFiUDPRead

To send reply, use beginPacket(), write(), end().
https://www.arduino.cc/en/Reference/WiFiUDPBeginPacket
https://www.arduino.cc/en/Reference/WiFiUDPWrite
https://www.arduino.cc/en/Reference/WiFiUDPEndPacket
